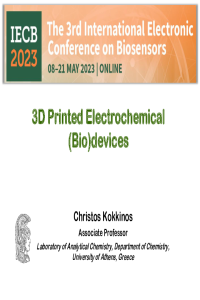

3D printed electrochemical (bio)devices

Three-dimensional (3D) printing has gained significant attention from industry and research laboratories, as it empowers the end user with the freedom to create in-house and on-demand specialized electrochemical systems adapted to immediate bioanalytical needs. Fused deposition modeling (FDM) is based on the CAD design of the sensor and its printing from thermoplastic filaments. FDM presents advantageous features such as low-cost portable printers, ease of operation, flexibility in the design, design transferability, and thus, it can complement and in some cases replace, existing fabrication technologies [1,2,3].

This presentation will discuss our recent developments of 3D-printed integrated chips and their applications to electrochemical biosensing [4,5,6]. The devices are printed from specific filaments (conductive and non-conductive) at different sizes and shapes, by a dual extruder 3D printer, in order to fit to the demands of various applications. More specifically, integrated all-3D-printed electrochemical microtitration wells (e-wells) for the in-situ and micro-volume quantum dot based bioassays will be described. Besides, a 3D printed 4-electrode biochip for the enzymatic simultaneous determination of two biomarkers and a 3D printed wearable glucose monitoring device in the form of an electrochemical ring (e-ring) will be presented.

References

1. A. Abdalla and B. A. Patel, Curr. Opin. Electrochem, 20 (2020) 78–81.
2. E. J. Carrasco-Correa, E. F. Simó-Alfonso, J. M. Herrero-Martínez, M. Miró, TrAC - Trends Anal. Chem., 136 (2021) 116177.
3. V. Katseli, A. Economou, C. Kokkinos, Electrochem. Commun. 103 (2019) 100–103.
4. V. Katseli, M. Angelopoulou, C. Kokkinos, Adv. Funct. Mater., (2021) 2102459.
5. V. Katseli, A. Economou, C. Kokkinos, Anal. Chem. 93 (2021) 3331−3336.
6. E. Koukouviti, C. Kokkinos, Anal. Chim. Acta 1186 (2021) 339114
