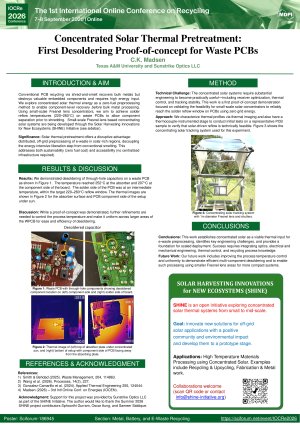

Concentrated Solar Thermal Pretreatment of Waste Printed Circuit Boards

Conventional PCB recycling via shred-and-smelt recovers bulk metals but destroys valuable embedded components and requires high energy input. We explore concentrated solar thermal energy as a zero-fuel preprocessing method to enable component-level recovery before bulk metal processing. Using small-scale Fresnel lens concentrators (300 mm aperture), we aim to achieve solder reflow temperatures (220–260 °C) on waste PCBs to allow component separation prior to shredding.

Technical Challenge: The concentrated solar systems require substantial engineering to become practically useful—including receiver optimization, thermal control, and tracking stability. This work is proof-of-concept focused on validating the feasibility for small-scale solar concentrators to reliably reach and maintain the solder reflow window on PCBs using zero grid energy.

Approach: We will characterize thermal profiles (via thermocouples and thermal imaging) on instrumented thermal stages and conduct initial tests on representative PCB samples to verify that solar-driven reflow is technically feasible and thermally controllable.

Significance: If proven feasible, solar thermal pretreatment offers a disruptive advantage: distributed, off-grid preprocessing of e-waste in solar-rich regions, decoupling the energy-intensive liberation step from conventional smelting. This addresses both sustainability (zero fuel cost) and accessibility (no centralized infrastructure required).

Outcomes: This work establishes whether concentrated solar is a viable thermal input for e-waste preprocessing, identifies key engineering barriers, and provides a foundation for scaled deployment. Success requires integrating optics, electrical and mechanical engineering, thermal control, and recycling process knowledge.
