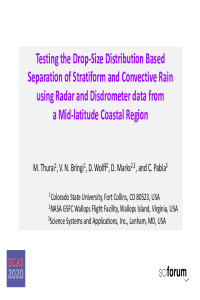

Testing the Drop-Size Distribution Based Separation of Stratiform and Convective Rain Using Radar and Disdrometer Data from a Mid-latitude Coastal Region

Stratiform and convective rain are associated with different microphysical processes and generally produce drop size distributions (DSDs) with different characteristics. Identification of these two rain types is also important for estimating rainfall rates from ground-based polarimetric radars as well as spaceborne radars. Previous studies have investigated DSD characteristics using disdrometer data along with radar observations and/or vertically pointing Doppler radar observations. One such study, using data from Darwin, Australia (a tropical coastal location), found that the two rain types could be separated in the N_W – D_m space, where Dm is the mass-weighted mean diameter and N_W is the normalized intercept parameter. Since then, the separation method has been tested using data and observations from Greeley, Colorado, a mid-latitude continental location with semi-arid climate, and Huntsville, Alabama, a sub-tropical continental location. In this paper, we investigate the same separation technique using data and observations from a mid-latitude coastal region, situated in the Delmarva peninsula in Virginia at NASA Wallops Flight Facility (WFF). Two different types of disdrometers were used to construct the full DSD spectra and the NW versus Dm based classification is compared with simultaneous observations from a S-band polarimetric radar 38 km away from the disdrometer site. Three-minute DSDs were used for the classification and RHI (range-height indicator) radar scans over the disdrometer were used for validation. Events which occurred on 14 and 16 October 2019 were chosen. Results show, surprisingly, that there was no need to modify the separation criteria from those used in Darwin, AU. Also considered were the outer rain bands of Hurricane Dorian (as Category-1) which occurred on 06 September 2019. However, in this case, it was largely stratiform rain during the major part of the storm affecting WFF. Scattering (T-matrix) calculations using the 3-minute DSD spectra were used to derive retrieval equations for N_W and D_m for the S-band radar data. These were applied to the radar scans to identify convective and stratiform rain regions as well as mixed or transition regions. Chosen RHI scans from two events (14 October 2019 and 06 September 2019) will be used as illustrative examples. Vertical profiles of reflectivity, differential reflectivity and copolar correlation coefficient over the disdrometer site will be extracted to establish whether or not the melting layer can be clearly distinguished. Specific times will be chosen from the two events and compared against the disdrometer data based classification as well for those corresponding times.
