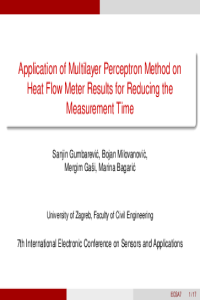

Application of Multilayer Perceptron Method on Heat Flow Method Results for Reducing the in-situ Measurement Time

To reduce the impact on climate change, many countries developed strategies for the building sector with a goal to reduce the energy demands and carbon emission of buildings. As most buildings that exist today, will very likely exist in foreseeable future, many buildings will need to undergo major renovations. One of the most important parameters in determining the transmission heat losses through the building envelope is the U-value, i.e. thermal transmittance, and it is simply the rate of heat transfer per unit temperature. Since the U-value is one of the most important parameters regarding building energy performance, envelope elements that do not perform well in terms of transmission heat losses must undergo the renovation processes. The in-situ U-value of building elements is usually determined by the Heat Flux Method (HFM). One of the issues of current application of the HFM is the measurement duration. This paper explores the possibilities of reducing the measurement time by predicting the heat flux rate using a multilayer perceptron (MLP), a class of artificial neural network. The MLP uses two input layers that are the interior and exterior air temperatures, and the output layer that is the predicted heat flux rate. The predicted value is trained by comparing the predicted heat flux rates with the measured values, and by rearranging the neural network parameters (weights and biases) in corresponding neurons by minimizing the mean squared error defined for trained values (measured versus predicted heat flux rates). The use of MLP shows promising results for predicting the heat flux rates for the analyzed cases (4 days HFM results) when the training is performed on 2/3, or 1/2, of the overall measurement time. The application of the MLP could be in reducing the in-situ measurement time when determining heat losses through building elements in shorter time periods.
